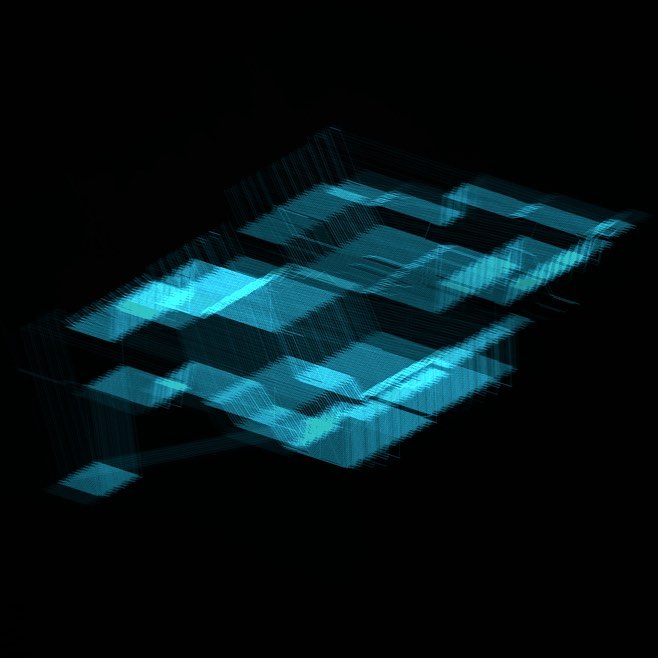

macumbista Pixel forensics #scanprocessing #puredata #ruttetra #macumbista #vectorsynthesis #oscilloscopeart #constructivism



macumbista Testing another #oscilloscope for the #workshop in #helsinki this weekend. #macumbista #vectorsynthesis #oscilloscopeart #puredata
Thanks: KOELSE, Antti Ahonen, and Tomi Flinck

macumbista Time/Energy Object 511 #vectorsynthesis #puredata #vectrex #lumensynth #vdmx #macumbista



Vector Synthesis: Syntheshape Depth Rotation
The Syntheshape is a simple analog circuit designed to produce 2D graphic art on the oscilloscope by Mitchell Waite in 1974. During my Toolmaker Residency at Signal Culture in Owego NY (OCT 2015), I tried unsuccessfully to hand-build one of these circuits. After leaving the idea aside for a while, I rewrote the Syntheshape in Pure Data while at the Vector Hack event in Zagreb (OCT 2018). To update it a bit, I added a depth axis for 3D. The three audio signals which describe the X axis, Y axis, and brightness of the shape are sent to be visualized on a Vectrex vector monitor, and the same signals are heard after being processed by the low pass filters of two Benjolin analog synthesizer circuits.

Helsinki, 09 OCT 2018


macumbista 90 days of wolf tracking data recorded by Antti Tenetz, visualized in 3D with time as the depth axis. #vectorsynthesis #vectrex #puredata #oscilloscopeart #workshop



Vector Synthesis: Tired Eyes/Enter the Void [Scan Processing]
This clip uses audio signals to display video on a modified Vectrex console. A photograph is scan processed with the classic Rutt-Etra technique. The brightness information modulates the Z axis (depth) of the raster, which is then projected from 3D to 2D space with perspective treatment. Coded with my Vector Synthesis library for Pure Data.
